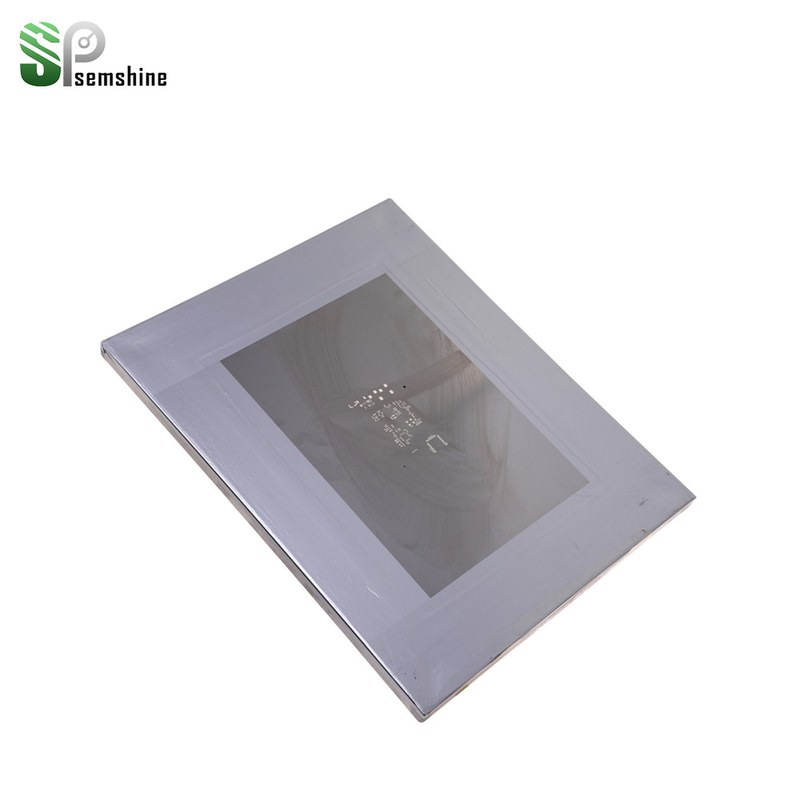

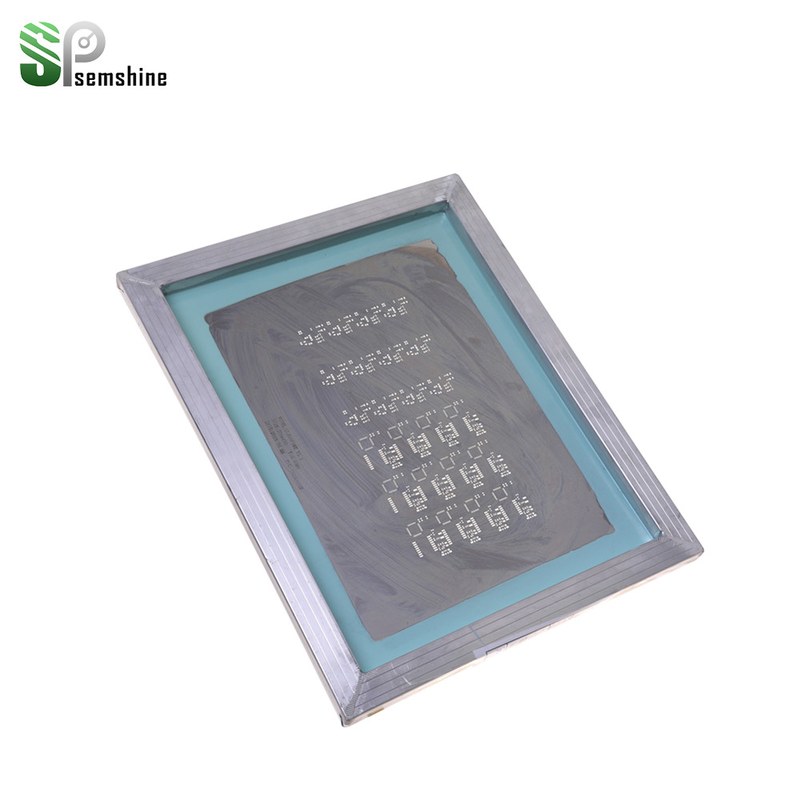

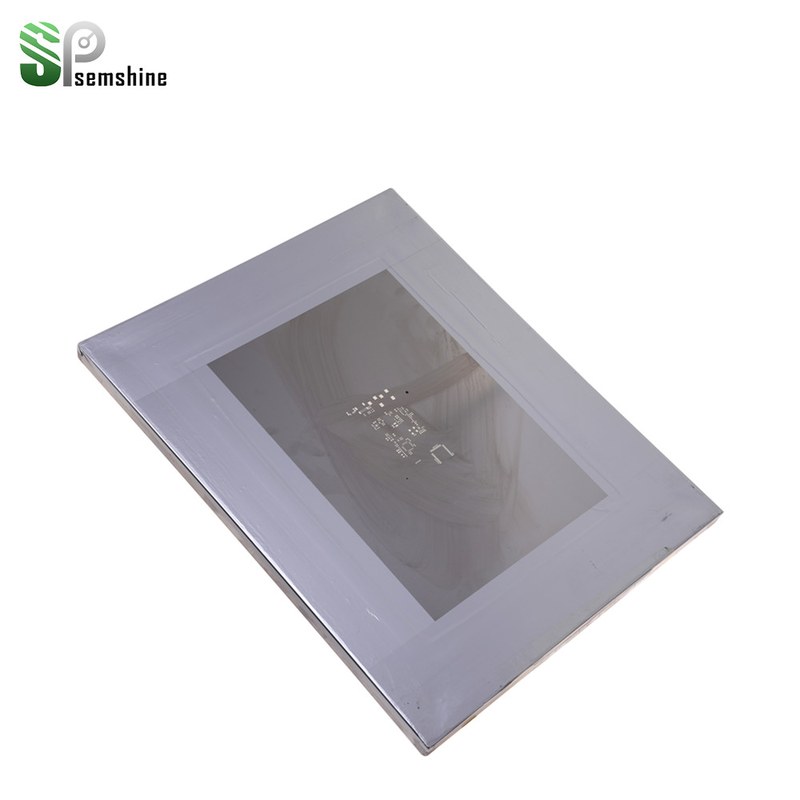

SMT Laser Solder Paste Stencil

Custom‑made laser‑cut SMT stencil for solder paste printing, matching your PCB Gerber files to support high‑precision PCBA SMT production.

Inquiry

Our custom laser‑cut SMT solder paste stencils are manufactured from high‑quality stainless steel foil according to customer Gerber files. Laser cutting ensures clean and smooth aperture walls for stable solder paste release during SMT printing. Optional electropolishing and nano‑coating treatments are available for fine‑pitch components such as 01005, 0201, QFP and BGA. Both framed and frameless formats are offered with multiple foil thickness options to match different PCB pad designs. Widely used for prototype and mass‑production PCBA assembly, improving printing consistency and reducing solder‑bridge defects.

Product Parameters
Service & Technical Parameters 1. Manufacturing Technology: Laser cutting
2. Raw Material Stainless steel foil
3. Standard Thickness 0.08 mm, 0.10 mm, 0.12 mm, 0.13 mm, 0.15 mm, 0.20 mm
4. Frame Option Framed stencil / Frameless stencil
5. Input File Gerber files for stencil layer 6. Optional Process: Electropolishing, nano‑coating for fine‑pitch components
7. Application SMT solder paste printing for PCB & PCBA assembly
8. Feature Fine pitch opening for 0201, 01005, QFP, BGA components
9. Lead Time Fast prototype stencil service available

Company Overview

Shenzhen SEMSHINE Tech Co., Ltd., established in 2006, specializes in PCB manufacturing and provides one-stop electronics manufacturing services, covering electronic component sourcing, PCB fabrication, PCB assembly, testing, and after-sales support.With more than 20,000 sqm of production facilities and a monthly production capacity of over 60,000 sqm, SEMSHINE has continuously upgraded its production lines and manufacturing capabilities. We support 1-layer to 30-layer PCBs, including HDI and other advanced PCB technologies, serving applications such as communications, medical equipment, consumer electronics, automotive electronics, drones, and more.Beyond PCB and PCBA manufacturing, we also provide competitive sourcing of electronic components and terminal blocks through our established supply chain network. With flexible payment methods and shipping options including air freight, sea freight, and express delivery, we help customers simplify sourcing and find practical solutions for cost and delivery.With nearly two decades of experience, SEMSHINE is committed to being more than just a PCB supplier, but a reliable long-term partner for customers worldwide.

factory show1

Certificates

Factory Show

FAQ

What types of PCBs can you manufacture?

SEMSHINE manufactures a wide range of PCBs, including single-sided, double-sided, multilayer, HDI, Flex, and Rigid-Flex PCBs. We can provide customized solutions according to different product designs, materials, and application requirements.

We can manufacture multilayer PCBs with up to 30 layers. The actual layer count depends on the board structure, materials, thickness, and other technical requirements of the project.

We provide a variety of PCB materials and surface finishes to meet different application requirements. Common options include FR-4 and other specialized materials, Like ROGERS, Teflon, as well as HASL, ENIG, and OSP surface finishes. We can recommend suitable materials and finishes based on your design and application.
