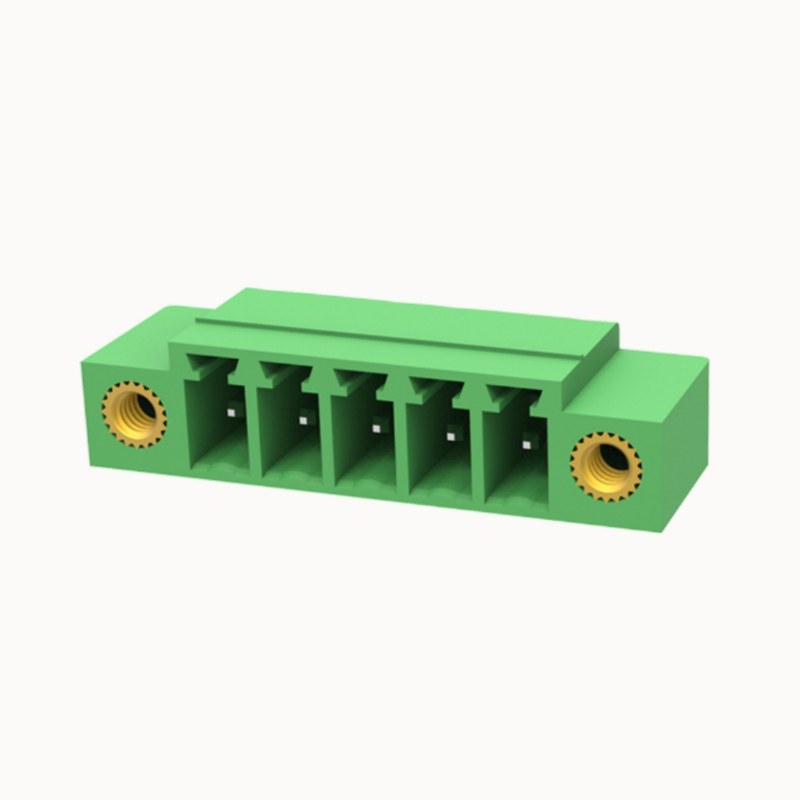

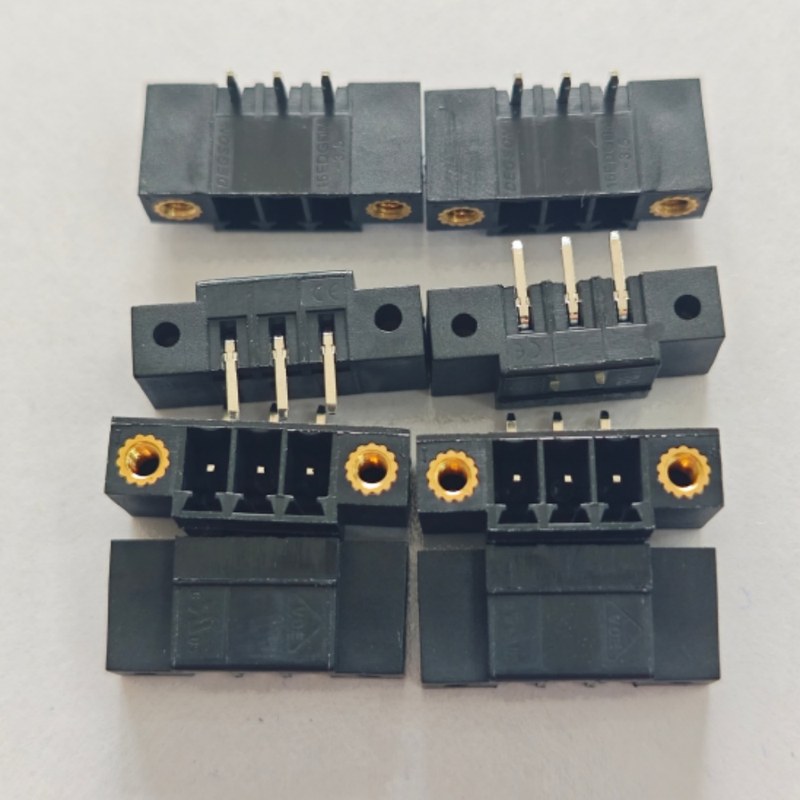

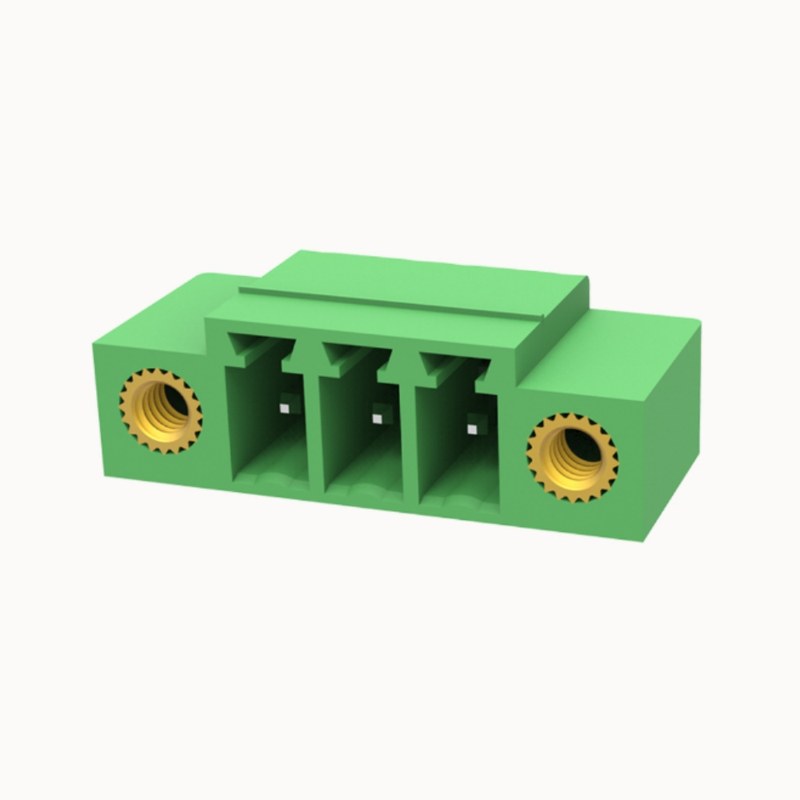

Pluggable Terminal Blocks PCB Socket 15EDGRM-3.5-02P/03P/04P

Pluggable Terminal Blocksnominal current7A.Rated voltage(Ⅱ/2)：250V,pitch:3.5mm,Color:green,Contact surface:Tin

Inquiry

Pluggable terminal blocks feature a separable structure, composed of PCB‑mount male headers and female connectors for wire termination. They support plug‑in and unplug operations, which simplifies equipment assembly and on‑site maintenance. Multiple pin pitch options are offered to fit different PCB layout requirements. The product is certified with cRUus and VDE, widely used for industrial and electronic equipment. Poles: 02P 03P 04P 05P 06P 07P 08P 09P 10P 11P 12P 14P 15P 16P 18P Product advantages

☑ Universal installation method to ensure a high degree of flexibility in device design

☑ The plug direction is perpendicular to PCB

Product Parameters
Processing notes
Process Wave soldering/manual soldering
Electrical parameters UL
Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A
Electrical parameters IEC
Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV
Item properties
Connection direction 0°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 3.5mm
Number of potentials 5
Pluggable or not Yes
Number of rows 1
Material data
Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0
Mechanical tests
Test Specification IEC61984/ UL1059
Environmental data
Ambient temperature (operation) -40℃~105℃(depending on derating curve)
