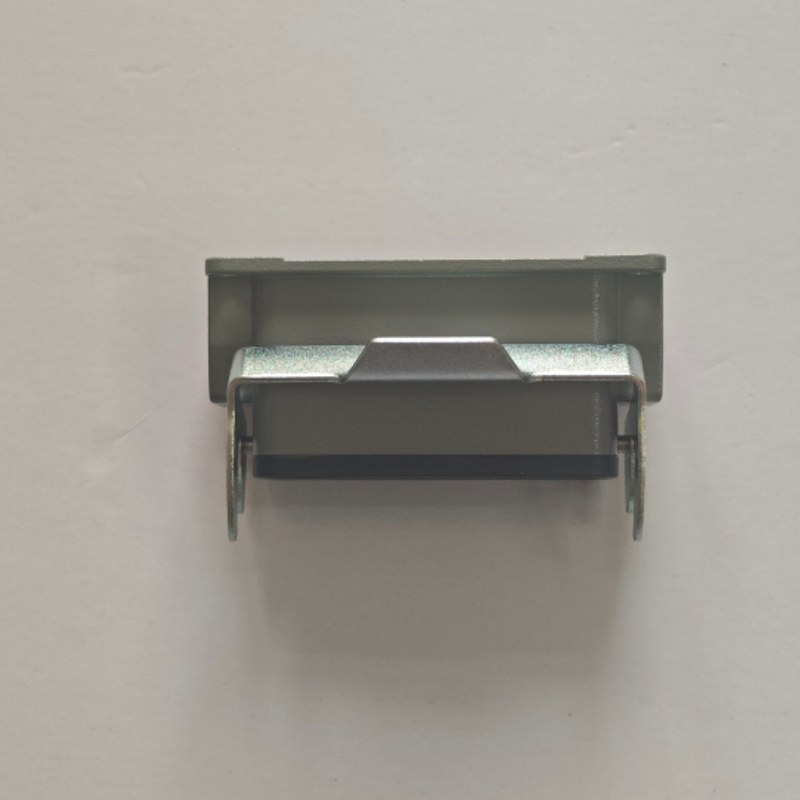

Heavy-Duty Connector Housing D16B-SF-1L-2PG21

16B Lower base,single buckle,back cover ,side entry,double PG21 Thread hole

Inquiry

Heavy‑Duty Connectors feature rugged metal‑reinforced housing structure, which delivers reliable power and signal connection under harsh industrial conditions. They adopt modular insert‑and‑contact construction for flexible pin‑count combinations. Multiple housing sizes and locking designs are provided to satisfy cabinet and field assembly demands, widely used for automation machinery, robotics and power equipment. Product advantages

☑Metal or high-strength plastic material, resistant to high-strength mechanical shock

☑Various installation methods and outlet directions to meet on-site wiring requirements

☑Snap-in combination structure, dustproof, waterproof, easy operation

Product Parameters
Marking
classification Upper Housing/base
Series B
Type Surface mount base
Specification Low structure
Versions
Dimension 16B
locking Category Single lock
Thread specification 2x PG21
Material characteristics
Flammability rating V-0
RoHS conform
Material (upper housing/base) Die-cast aluminium alloy
Material(upper housing/base) spray
Color (upper housing/base) Grey（RAL 7037）
Material (seal) NBR
Material (lock catch) Zinc plated
Technical specification
Limiting temperatures -40℃~+125℃
IP class IP65
