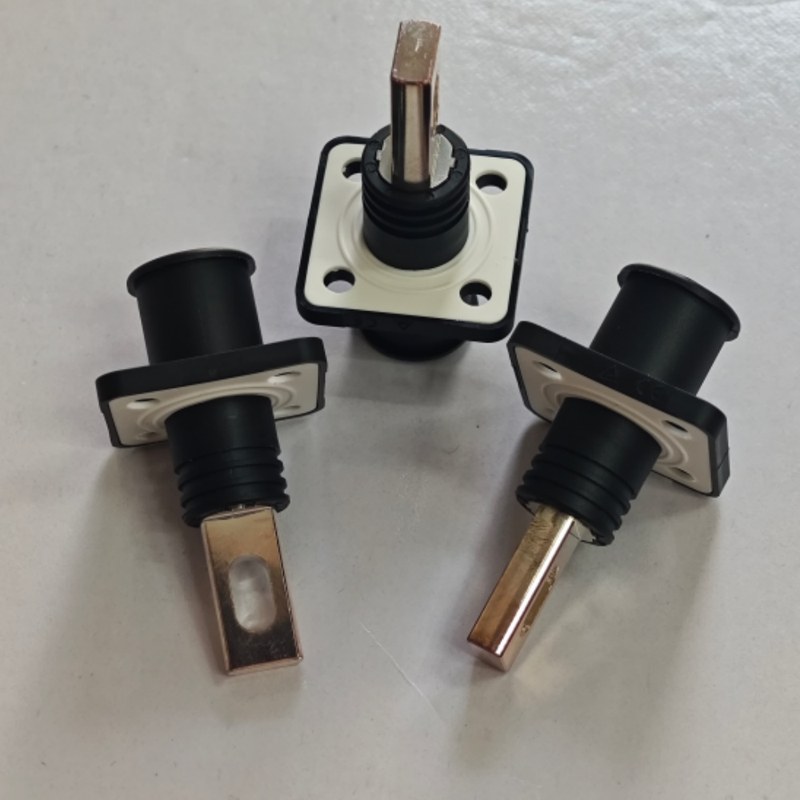

Energy Storage Connector ESS socket ESS-120A-25-B-BK-00

Energy Storage Connector, Product range: ESS socket, Color: black, Wire cross section: 25 mm², Rated voltage: 1500V, Rated current: 120 A, Connection method: Busbar, Contact type: Pin

Inquiry

Energy storage connectors feature heavy‑duty housing structure, which enables stable power transmission for energy‑storage facilities. They adopt mature internal construction to guarantee consistent electrical interconnection. Practical structural design is provided to satisfy system assembly demands. The product is certified with TUV, CE and RU, widely used for new‑energy and energy‑storage related devices. Product advantages

☑ Exclusive patents

☑ IP67 protection

☑ With safety locking latch

☑ The plug can rotate 360°after assembled

☑ The socket is with hand-proof protection

☑ With color-coded and mechnism-coded desgin avoiding misplug

Product Parameters
Wiring data
Wiring mode Busbar
Environmental conditions
Operating ambient temperature (including temperature rise) -40℃-125℃
Environment condition
Protection grade (pair plug) IP67
Ambient temperature (storage/transportation) -40°C ~ +80°C
Altitude 2000m
Mechanical properties
Plugging times 100
Insertion force <60N
Pullout force >10N
Standards and specifications
Standard/Specification UL4128
Material data
Insulating material Nylon
Halogen-free Compliance with standards
Environmental protection matters REACH/RoHS compliant
Sealing ring material Silicone
Contact material Copper alloy
Shell color Black
Flammability rating UL94V-0
Electrical parameters
Pollution level 3
Rated current 120A,UL DC1500V
Insulation resistance >5000MΩ
Contact resistance ≤0.5mΩ
